Easy calibration of driver assistance systems

CONNEX Digital ADAS

New version
2.0

Camera calibration

Radar calibration
Keystone system (patent pending)

The system is still the heart of BRAIN BEE calibration technology. Keystone is the technology that perfectly aligns the calibration target with the vehicle without having to move it even an inch. Thanks to special software, the angle of view of the camera or radar can be determined with the highest precision. The required target is positioned correctly in order to perform the calibration optimally and with full certainty of results

Easy handling – LASERmeter

It’s so easy to use that you can get started right away without extensive training. The system guides you through all steps of the calibration process.

Targetless technology

The core element of the system is MAHLE’s targetless technology. The versatility of the calibration panel allows the screen to be adapted to any current or future vehicle manufacturer protocol.

Fully automatic

Any adjustment of the digital calibration chart to the car is automatic. The calibration frame is adjusted via the electrical control. The car does not need to be moved.

  • Automatic height adjustment of the monitor
  • Automatic vehicle identification via license plate***.
  • Automatic height adjustment

The revolutionary CONNEX Digital ADAS system from BRAIN BEE is uncomplicated and fast. Any workshop can now service the ADAS system in a few simple steps with the help of the CONNEX Digital ADAS. With the Targetless Digital System (patent), no additional calibration chart is required.

The identification of the model and ECU on vehicles has never been so fast! Thanks to the license plate recognition (*) and a special camera, the device immediately recognizes the systems to be calibrated. This means no more wasted time in daily work in the workshop: just one click and calibration can begin!


LASERMETER
 NEW

Automatically transmits the distances to the vehicle to the diagnostic device via Bluetooth

Universal cover

Ensuring the widest possible market coverage is very important to us. The database behind DIGITAL ADAS benefits from the continuous development of Connex self-diagnostics.

digital

No physical calibration panels required – saves space in the workshop

WiFi/WLAN connection

Ensures that systems and calibration procedures are always up to date

super fast

can be used in max. 5 minutes to be aligned and positioned

4K monitor (UHD)

Ensures extreme accuracy in all lighting conditions

Wheel clamp system

Choice of wheel clamp systems for the optimal solution in your workshop
Expand your range of services and calibrate yourself or for others, easy as pie!

Easy calibration in only 6 steps

1.

Select the make and model of the car on the CONNEX display. Then select DIGITAL ADAS. The superimposed instructions show you how to position the vehicle.

2.

Attach the wheel clamps to the front wheels as described in the overlaid instructions.

3.

Place the digital calibration panel close in front of the vehicle. The rack makes positioning very easy.

4.

Using the laser rangefinders, set the values to perform the keystone function.

5.

Conveniently adjust the height with the remote control and motorized height adjustment.

6.

Calibration begins. The monitor displays the calibration chart and adjusts it depending on the position of the Vehicle, for accurate maintenance on.

Individually adapted to your needs

TECHNICAL DATA

  • Patented TARGETLESS technology
  • Integrated communication with NEXUS 3.0 BUS system via WLAN
  • Motorized target height adjustment
  • Adaptive system for automatic adjustment to vehicle positioning
  • Measurement via high-precision laser rangefinder
  • Ultralight Radar Calibration Chart
  • 65-inch full HD monitor+ Integrated control PC, Windows 10
  • Dimensions: 3000 x 1500 x 1800 mm
  • Weight: 75 kg

CONNEX DIGITAL ADAS FULL CAMERA + RADAR

CONNEX Digital ADAS 2.0 (*)(**)(***) Fully automatic camera and radar calibration

(*) Does not include CONNEX/Smart and license

(**) Wheel clamp kit choices: Rim Self-Centering Clamp Kit (12″/21″) – Rim Clamps; Tyre Self-Centering Clamp Kit (13″/21″) / Tyre Self-Centering Clamp Kit (13″/24″) – Wheel Clamps.

(***) Automatic vehicle identification based on license plate not available in all countries.

Choose between different connection options

CONNEX, CONNEX BT // CONNEX SMART //

The diagnostic devices still represent the core of our product range today. Thanks to our many years of experience and constant investment in design, operability and regular updating of databases, our vehicle diagnostic equipment is capable of performing all the diagnoses that are possible with the respective vehicle electronics.

Diagnostic equipment highlights:

  • Own software development
  • Comprehensive market coverage
  • Troubleshooting guides (optional)
  • PASS-THRU function
  • Extensive software offerings for special applications
  • Permanent software updates via internet download
  • Start license unlimited, update licenses optional
  • High compatibility with various operating systems
  • High security standard for Internet connections
  • Spare part identification

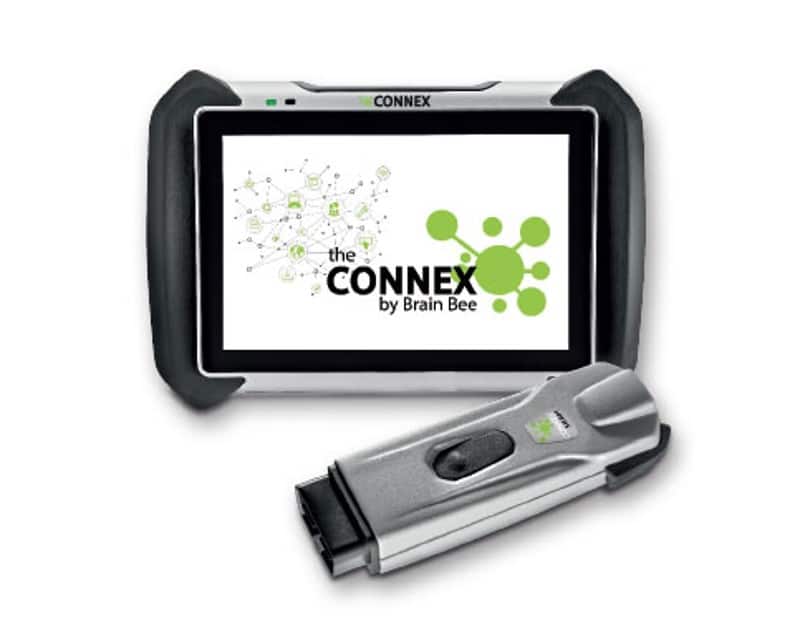

CONNEX, CONNEX BT

EOBD connection via Bluetooth

CONNEX and CONNEX SMART initially build on all the important diagnostic functions of the already familiar and successful Fastline diagnostic devices:

  • Reading out the control unit info
  • Reading and clearing the errors
  • Display and recording of the measured values
  • Adaptations/teaching of components
  • Actuator diagnostics
  • Coding
  • Graphic display of the diagnostic connector position in the vehicle and the diagnostic connector to be used

CONNEX: Always up to date, always ready for exclusive features. Thanks to WLAN connection, every update is automatically installed on your CONNEX device: Your device always offers the highest performance. In addition, the WLAN connection allows direct and immediate access to a large number of other exclusive features such as:

  • Automatic vehicle identification
  • Vehicle identification via VIN number
  • BPS enables guided repair instruction

In addition, the BRAIN BEE Helpdesk is at your disposal: Every report you send will be analyzed immediately and answered quickly.

Automatic vehicle search – Quickly ready for use!

CONNEX immediately recognizes the vehicle model you are working on. You can choose between different options, according to your preferences or habits:

  • About the EOBD socket
  • By entering the VIN code
  • Manual search for the model, facilitated by real vehicle images

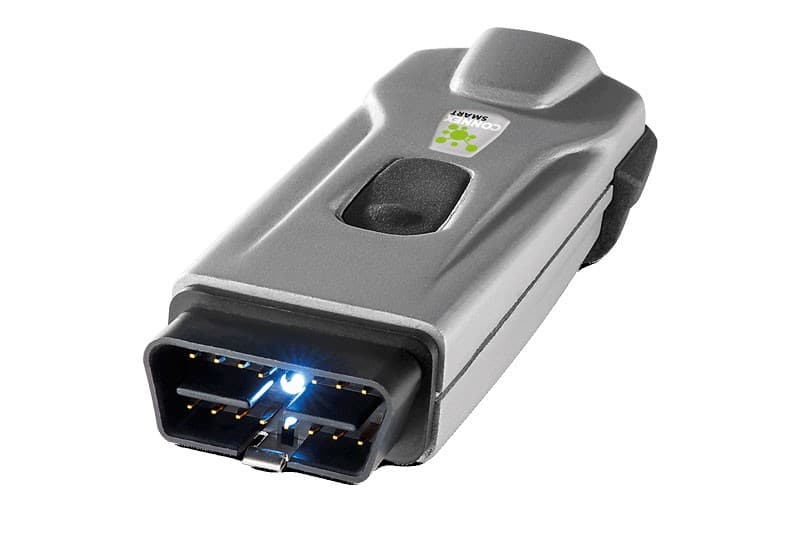

CONNEX SMART

In combination with PC(1) or tablet(2) – EOBD connection via Bluetooth

CONNEX and CONNEX SMART initially build on all the important diagnostic functions of the already familiar and successful Fastline diagnostic devices:

  • Reading out the control unit info
  • Reading and clearing the errors
  • Display and recording of the measured values
  • Adaptations/teaching of components
  • Actuator diagnostics
  • Coding
  • Graphic display of the diagnostic connector position in the vehicle and the diagnostic connector to be used

CONNEX: Always up to date, always ready for exclusive features. Thanks to WLAN connection, every update is automatically installed on your CONNEX device: Your device always offers the highest performance. In addition, the WLAN connection allows direct and immediate access to a large number of other exclusive features such as:

  • Automatic vehicle identification
  • Vehicle identification via VIN number
  • BPS enables guided repair instruction

In addition, the BRAIN BEE Helpdesk is at your disposal: Every report you send will be analyzed immediately and answered quickly.

Automatic vehicle search – Quickly ready for use!

CONNEX immediately recognizes the vehicle model you are working on. You can choose between different options, according to your preferences or habits:

  • About the EOBD socket
  • By entering the VIN code
  • Manual search for the model, facilitated by real vehicle images

(1) Windows (2) Windows, Android, iOS

SELECT A FASTENING SYSTEM

RIM WHEEL CLAMPS

Self centering wheel clamp for rims

TIRE WHEEL CLAMP

Self centering wheel clamp for tire

CHOOSE THE LICENSE/UPDATE runtime

12 months license

Software updates, bug fixes, updates for new vehicles – NO SUBSCRIPTION

36 months license

Software updates, bug fixes, updates for new vehicles – NO SUBSCRIPTION

ALL PACKAGES INCLUDE:

TUTOR

Guided troubleshooting and technical information

ADAS ACTIVATION

Software activation

DELIVERY & ASSEMBLY

Delivery, assembly and instruction

VIEW IN THE STORE:

Artificial intelligence for vehicle calibration

The use of artificial intelligence in ADAS calibration

The revolutionary CONNEX Digital ADAS system from BRAIN BEE is uncomplicated and fast. Any workshop can now service the ADAS system in just a few simple steps. With the Targetless Digital System (patent), no additional calibration chart is required.

The identification of the model and ECU on vehicles has never been so fast! Thanks to the license plate recognition (*) and a special camera, the device immediately recognizes the systems to be calibrated. This means no more wasted time in daily work in the workshop: just one click and calibration can begin!

  • Fully automatic calibration
  • 3D tutorials support the application
  • Keystone System (Patent Pending)
Expand your range of services and calibrate yourself or for others, easy as pie!

ADVICE DESIRED?

Tel.: 07223/2818247

Contact us without obligation.

Frau Redemann
Your contact

CONSULTING, FINANCING, FULL AMORTIZATION, LEASING

We are an official distributor of Mahle Brain Bee.

Feel free to contact us without obligation by mail, phone or contact form.


    FirmaHändler











    E-MailTelefonRückruf



    AllgemeinADAS-Radar& Kamera KalibrierungKlimageräteEmissionÖlserviceSonstiges - Bitte angeben



    CONNEX Digital ADAS 2.0 (*)(**)(***) Fully automatic camera and radar calibration:

    • Keystone technology (patent pending) for maximum accuracy
    • WiFi connection
    • No physical calibration panels required
    • Automatic vehicle identification via license plate***.
    • Laser meter: automatically transmits the distances to the vehicle to the diagnostic device via Bluetooth
    • Automatic height adjustment
    • Wheel clamp system
    • Horizontal bar can be divided to save space
